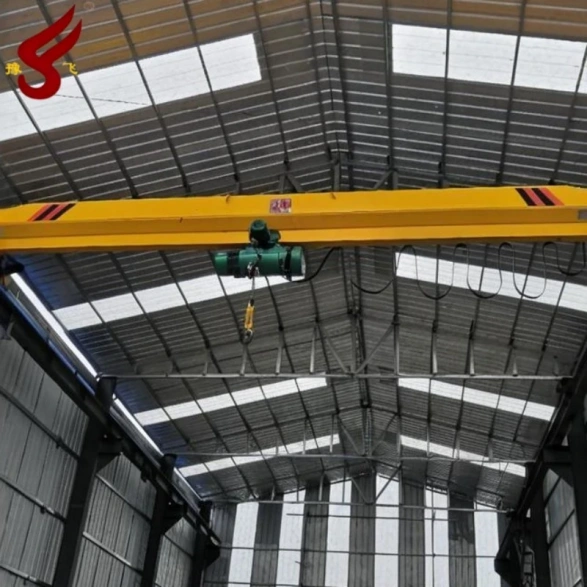

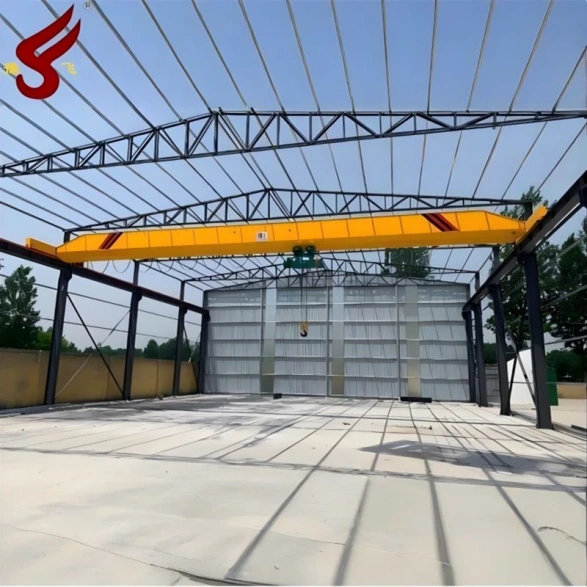

Top Running Single Girder Overhead Crane
Authentication mark:
Capacity:
1 – 20 ton (customised up to 32 ton)
Lifting Height:
6 / 9 / 12 / 18 / 24 / 30 m (customised up to 30 m)
Span:
7.5 – 31.5 m
Voltage/Hertz:
3-Phase AC, 380V / 400V / 415V / 460V, 50Hz / 60Hz
Working Class:
A3 – A5
Apply : Manufacturing & Assembly Plants、Warehouses & Logistics Centers、Machining & Fabrication Shops、Steel & Metallurgy Plants、Automotive Industry、Mining & Quarrying、Shipyards & Docks、Construction Material Yards
Get A Free Quote
Introduction
Technical Data
Application

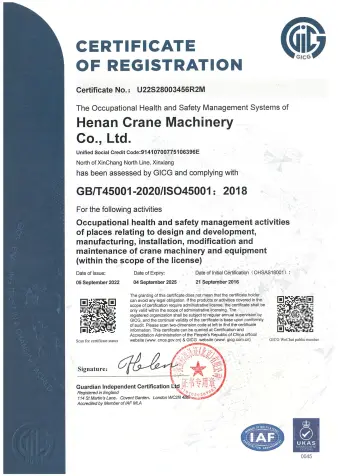

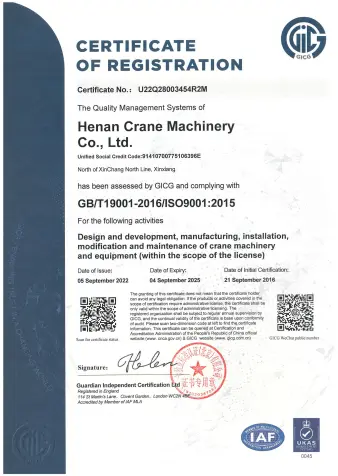

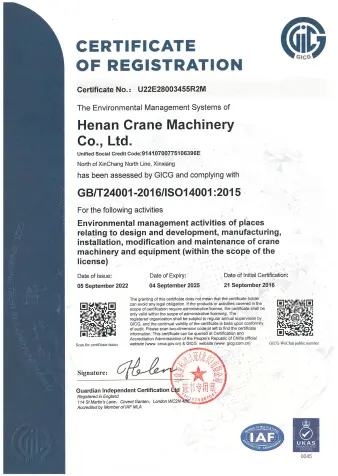

Certificate

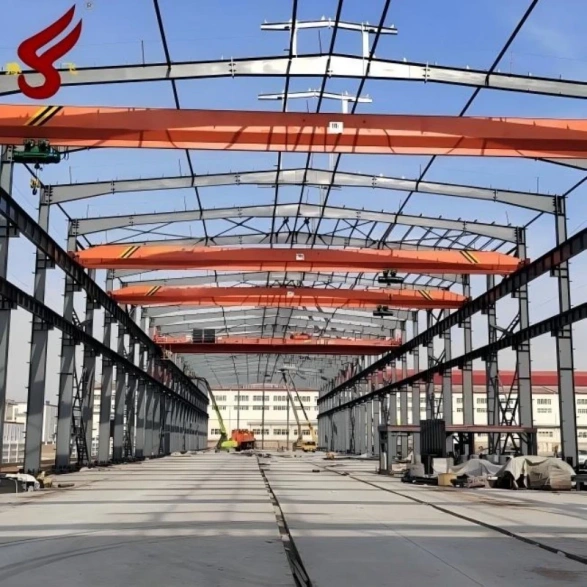

PRODUCT INTRODUCTION
The Top Running Single Girder Overhead Crane is a light-duty electric overhead travelling crane designed for general material handling in factories, warehouses, and machining workshops. Built around a single box-section main girder and paired with CD1 or MD1 electric hoists, it handles lifting capacities from 1 to 20 tonnes across spans of 7.5 to 31.5 metres.
The LDA model is an upgraded version of the original LD type. The travelling mechanism and electrical system have been redesigned: control voltage is reduced from 380V to a safe 36V, improving operator safety without compromising performance. The box-section girder delivers high rigidity and load stability across the full working span.
Two hoist options are available: the CD1 single-speed hoist for standard operations, and the MD1 dual-speed hoist for applications requiring precise load positioning. Control can be pendant, wireless remote, or cabin-mounted depending on the facility layout. Main electrical components are Schneider, sourced from France.
The crane operates across a temperature range of -25°C to +40°C and is suitable for A3 to A5 working duty cycles. It is not rated for use in combustible, explosive, or chemically corrosive environments.

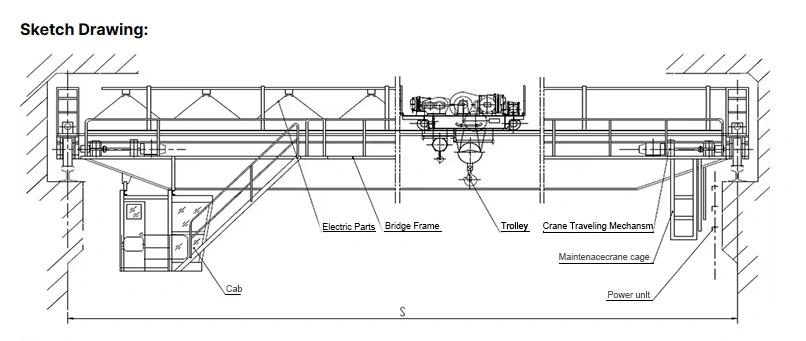

TECHNICAL DATA
| Parameter | Specification | Parameter | Specification |
| Parameter | Specification | Model | LDA |
| Lifting Capacity | 1 – 20 ton (customised up to 32 ton) | Span | 7.5 – 31.5 m |
| Lifting Height | 6 / 9 / 12 / 18 / 24 / 30 m (customised up to 30 m) | Working Duty | A3 – A5 |
| Lifting Speed | 3.5 / 7 / 8 m/min (single speed CD1 or dual speed MD1) | Trolley Travelling Speed | 2 – 20 m/min |
| Power Supply | 3-Phase AC, 380V / 400V / 415V / 460V, 50Hz / 60Hz | Control Voltage | 36V (safe control voltage) |
| Control Method | Pendant control / Wireless remote control / Cabin control | Working Temperature | -25°C to +40°C |
| Ambient Humidity | ≤ 85% | Noise Level | < 85 dB(A) |
| Electric Hoist | CD1 (single speed) / MD1 (dual speed) | Main Electrics | Schneider (France) |
| Standards | GB/T 14405、JB/T 1306-2008、GB 3811-2008 |
APPLICATION
Mechanical Manufacturing Workpiece transfer between CNC machining centres, machine loading and unloading, assembly line material handling, mould and die transport
Warehousing and Logistics Goods loading/unloading at docks, palletised cargo stacking in storage areas, order picking and inventory management in distribution centres
Automotive Production Component handling along assembly lines, engine and gearbox lifting during vehicle manufacturing, spare parts storage and retrieval
Metal Fabrication Raw steel plate and coil handling at cutting and welding stations, finished product transfer in fabrication workshops
Light Industry and Textile Handling paper rolls in paper mills, fabric roll movement in textile factories, raw material feeding in food processing and packaging facilities
Repair and Maintenance Workshops Lifting engines and gearboxes in automotive service bays, machinery disassembly and reassembly in equipment repair centres, pump and valve handling in utility maintenance facilities
